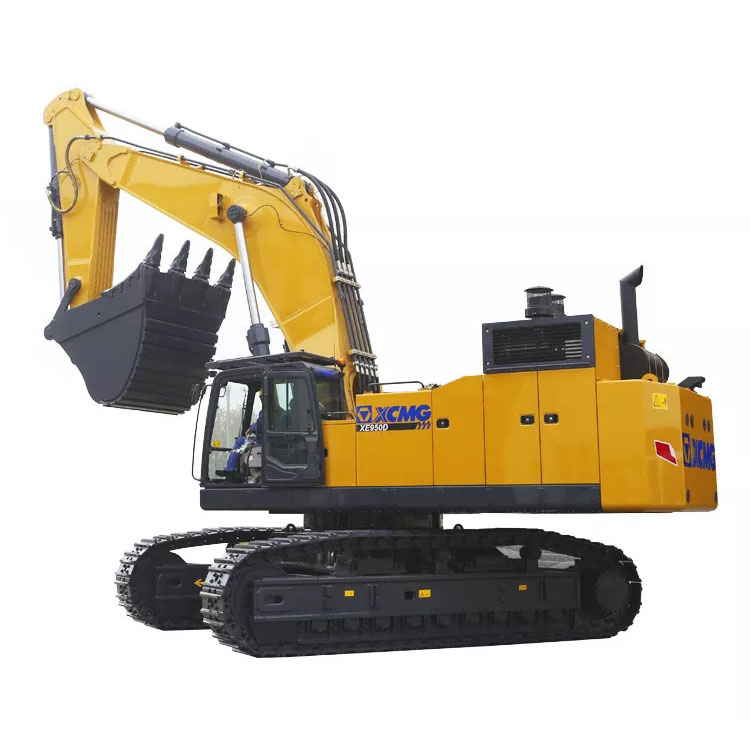

100 Tons Used Excavator
The price of 100 Tons Used Excavator provided by Quan Yu made in China is relatively affordable. Compared to the high price of new machines, 100 Tons Used Excavator are undoubtedly a more economical choice.
Send Inquiry
Product Description
For some newly established construction companies or individual practitioners, purchasing second-hand excavators such as 100 Tons Used Excavator is undoubtedly an effective way to reduce costs.
In addition, purchasing second-hand excavators can also provide more choices, as there are various models and brands of second-hand excavators available on the market for selection.
Secondly, the performance of second-hand excavators is reliable.
Although 100 Tons Used Excavators are not brand new, their performance can still be guaranteed after professional maintenance and testing.
Once again, the delivery speed of second-hand excavators is relatively fast.
Compared to the time required to book and queue for delivery when purchasing new machines, purchasing a second-hand excavator(100 Tons Used Excavator) can be achieved in a short period of time.
This is particularly important for users, especially in emergency situations where construction needs to start as soon as possible.
Product Parameter
|
DX800E-X EXCAVATOR SPECIFICATIONS |
||
|
Working Weight |
77.2 T |
|
|
Bucket Volume |
4 m3 |
|
|
Engine Model |
QSK15 |
|
|
Rated Power/Rated Speed |
336 kW/ rpm |
|
|
Fuel Tank Capacity |
950 L |
|
|
Max./Min Travel Speed |
4.8/3.0 km/h |
|
|
Swing Speed |
7.2 r/min |
|
|
Grade Ability |
35 ° |
|
|
Bucket Digging Force |
300/328 kN |
|
|
Arm Digging Force |
238/260 kN |
|
|
Ground Pressure |
100 kPa |
|
|
Traction Force |
553 kN |
|
|
Hydraulic Pump Model |
K3V282DH |
|
|
Max. Flow Volume |
490*2 L/min |
|
|
Working Pressure |
31.4（34.3）MPa |
|
|
Hydraulic Oil Tank Capacity |
335 L |
|
|
Overall Length |
13104 mm |
|
|
Overall Width |
4256 mm |
|
|
Overall Height（Boom Top） |
5269 mm |
|
|
Overall Height（Cab Top） |
3530 mm |
|
|
Ground Clearance |
1600 mm |
|
|
Min. Ground Clearance |
898 mm |
|
|
Rear Swing Radius |
4500 mm |
|
|
Track Ground Distance |
4720 mm |
|
|
Track Length |
5957 mm |
|
|
Track Gauge |
2750/3350 mm |
|
|
Track Width |
3400/4000 mm |
|
|
Pitch |
650 mm |
|
|
Width of Upper Structure |
3995 mm |
|
|
Max. Digging Height |
11673 mm |
|
|
Max. Dumping Height |
7642 mm |
|
|
Max. Digging Depth |
6868 mm |
|
|
Maximum vertical digging depth |
5727 mm |
|
|
Digging depth @ 2.5m |
6710 mm |
|
|
Maximum digging reach |
11762 mm |
|
|
Maximum digging reach at ground |
12064 mm |
|
|
Min. Swing Radius |
5070 mm |
|
|
Max. Digging Height @ Min. Swing Radius |
9890 mm |
|
|
Distance between Swing Center and Rear Point |
4500 mm |
|
|
Track Grouser Height |
50 mm |
|
|
Counter Weight Height |
2900 mm |
|
|
Ground Length when in Transporting |
7394 mm |
|
|
Arm Length |
3020 mm |
|
|
Boom Length |
7100 mm |
|
|
Packing |
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. |
|
|
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice |
||
Model Characteristics:
1. Engine
100 Tons Used Excavator's engine that provides powerful performance and low fuel consumption. The overall system is optimised to provide a comprehensive performance upgrade.
2. Latest fuel filter
The latest fuel filer improves filtration and ensures oil inlet quality, thus improving the reliability of the 100 Tons Used Excavator under harsh operating conditions.
3. Hydraulic system
Hydraulic components of the 100 Tons Used Excavator are configured to match capabilities for excellent performance.
4. Structure
Finite element analysis is used in the structural design to strengthen key components so that they can withstand greater stress. This ensures that the machine stays durable under different harsh operating conditions.
5. Optional match
Optional tools include a breaker, a cold temperature activation device, and falling object protection, all to increase the capabilities of the machine.
100 Tons Used Excavator is has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency, large digging force, comfortable driving environment and wide range of application.
All Used Excavator have a service life ranging from 2010 to 2023, and buyers are welcome to choose.
