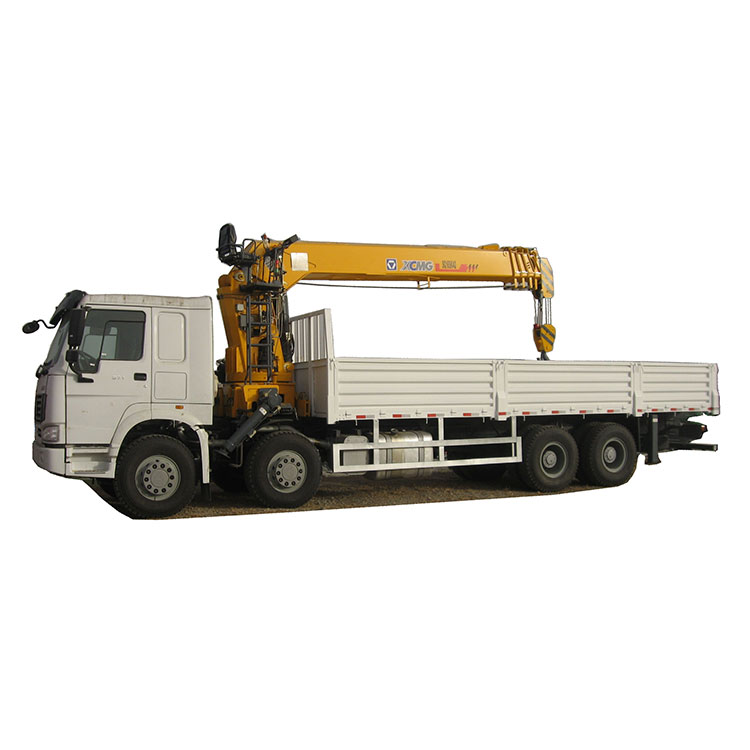

16 Tons Boom Truck
Quan Yu's high-quality 16 Tons Boom Truck is usually divided into two types: fully rotating and non fully rotating. The fully rotating crane can rotate 360 degrees and has higher maneuverability than non fully rotating cranes; The non fully rotating type is usually used in operations that require larger booms such as longer distances or vertical lifting.
Send Inquiry
Product Description
Quan Yu's high-quality 16 Tons Boom Truck is usually divided into two types: fully rotating and non fully rotating. The fully rotating crane can rotate 360 degrees and has higher maneuverability than non fully rotating cranes; The non fully rotating type is usually used in operations that require larger booms such as longer distances or vertical lifting.
Product Parameter
|
SINOTRUK HOWO 8x4 BOOM TRUCK SPECIFICATIONS |
||||
|
Truck Model |
ZZ1317N3867W(Left Hand Drive ) |
|||
|
Truck Brand |
SINOTRUK-HOWO |
|||
|
Dimension (LxWxH) (unloaded)mm |
11500×2550×4150 |
|||
|
Body |
Carriage Internal Dimension:7000x2400x700 mm Steel thickness of Carriage：Floor:3mm/Side:1.5mm XCMG SQ16SK4Q(Straight arm type) |
|||
|
Approaching angle/ Departure angel (°) |
16/15 |
|||
|
Overhang (front/rear) (mm) |
1500/1830 |
|||
|
Max gradability (°) |
36% |
|||
|
Min Turning Radius(m) |
＜10.2m |
|||
|
Min ground clearance(mm) |
265 |
|||
|
Wheel base (mm) |
1800+3775+1400 |
|||
|
Max. Driving speed (km/h) |
102 |
|||
|
Front axle loading capacity (kg) |
2*9000 |
|||
|
Rear axle loading capacity(kg) |
2*16000 |
|||
|
Curb weight (kg) |
19260 |
|||
|
Gross vehicle weight |
41000 |
|||
|
16Ton Crane（XCMG SQ16SK3Q Straight Arm Crane） |
||||
|
Max lifting capacity（KG） |
16000 |
|||
|
Max lifting capacity（T.M） |
43.2 |
|||
|
Recommend power（KW） |
41 |
|||
|
Max oil flow（L/MIN） |
80 |
|||
|
Max pressure（MPA） |
28 |
|||
|
Oil Tank Capacity（L） |
260 |
|||
|
Rotation angle（°） |
360 |
|||
|
Max extension length（MM） |
19000 |
|||
|
Max lifting height（MM） |
21000 |
|||
|
Max elevation（°） |
75 |
|||
|
Cab Model |
SINOTRUK HW76 Lengthen cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner,left hand driving. |
|||
|
Engine Model
|
Model |
WD615.47(EURO II),71hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
||
|
Rated Power(kw/rpm) |
273/2200 |
|||
|
Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃opening begin, Rigid fan |
||||
|
Clutch |
SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance |
|||
|
Transmission |
Model |
SINOTRUK HW19710 transmission ,10 forward and 2 reverse. |
||
|
Brake system
|
Service brake |
Dual circuit compressed air brake, |
||
|
Parking Brake (emergency brake) |
Spring energy, compressed |
|||
|
Steering system |
Model |
ZF8118 Steering Gear Box ,hydraulic steering with power assistance. (Left hand driving) |
||
|
Front axle |
SINOTRUK 2*9000 front axle,new2* 9-ton front axles of equipped with drum brakes. |
|||
|
Rear axle |
SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.42;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. |
|||
|
Wheels &Tire |
Rims:8.5-20,10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire. |
|||
|
Electrical system
|
Electrics Operating voltage |
24V,negative grounded |
||
|
Starter |
24V,7.5 Kw |
|||
|
Alternator |
3-phase,28V,1500 W |
|||
|
Batteries |
2x12 V,165 Ah |
|||
|
horn,headlamps,fog lights,brake lights,indicators and reverse light。 |
||||
|
Oil Tank |
Square type-400L fuel tank |
|||
|
Packing |
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. |
|||
|
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice |
||||
HOWO 16 Tons Boom Truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.
The boom truck is also called boom arm crane truck, hydraulic crane truck, boom truck crane, dump crane truck, etc. The 16 Tons Boom Truck is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional 16 Tons Boom Truck manufacturer in China, the crane capacity is from 2 ton to 20 ton. The drive type of chengli crane truck for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc.
We are the agency for SINOTRUK wholesale truck series, we can supply HOWO tractor trucks, HOWO dump trucks, trailer truck, truck parts, agricultural machinery, Construction machinery and parts,HOWO concrete mixer trucks, special trucks and so on.we can supply 16 Tons Boom Truck for our clients with good quality and competitive price, because we get directly support from the CNHTC factory.
Main products
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
