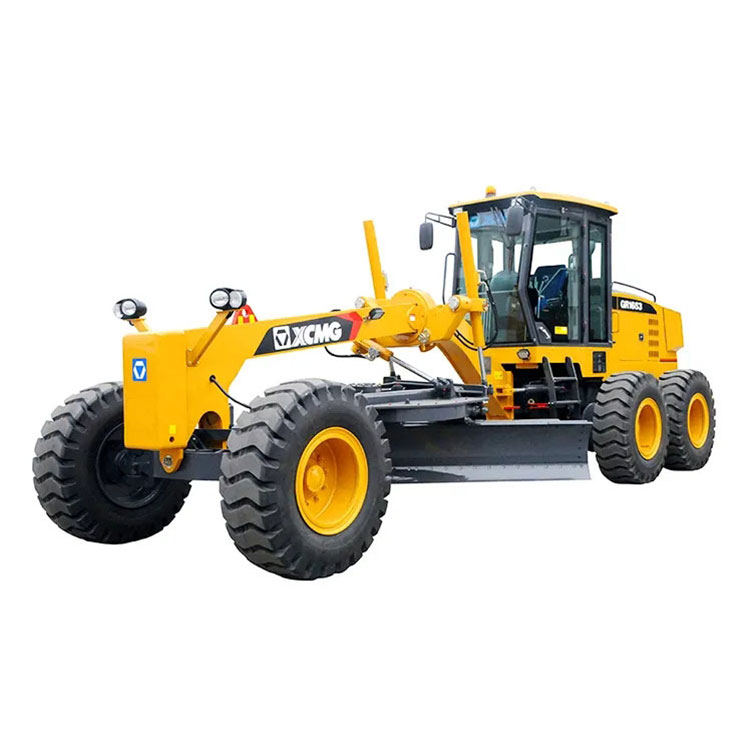

165 Hp Used Motor Grader
The Quan Yu's high-quality 165 Hp Used Motor Grader serves as a crucial mechanical equipment widely employed in land development and various construction projects. Its primary function involves leveling and compacting the land, preparing it for subsequent construction or planting activities.
Send Inquiry
Product Description
High-quality 165 Hp Used Motor Grader offered by Quan Yu is a mechanical equipment widely used in land development and construction projects.
165 Hp Used Motor Grader's main function is to level and compact the land, making it suitable for subsequent construction or planting work.
The use of second-hand graders has become an indispensable part of modern construction projects.
Firstly, second-hand graders have excellent leveling effects.
This is because 165 Hp Used Motor Grader is equipped with various high-tech and advanced technologies, including hydraulic systems and regulating devices.
These technologies can make the machine run smoothly and automatically adjust the vibration frequency and amplitude to achieve the best flat state of the ground.
Product Parameter
|
SDLG G9165 MOTOR GRADER SPECIFICATIONS(165 Hp Used Motor Grader) |
|||
|
G9165 is a product of high speed, high efficiency, high accuracy and multiple purposes developed by SDLG on the basis of advanced technology of European, can be used for ground leveling and grooving , scraping slope, bulldozing, ploughing snow, loosing, compaction, material arrangement and mixing working , and it is widely applied in construction operating condition of road, airport, defense engineering, mine construction , road construction, water conservancy construction and farmland improvement and so on. |
|||
|
OVERALL DIMENSION |
|||
|
Dimension |
8975x2710x3240mm |
Min ground clearance of front axle |
610mm |
|
Ground clearance of rear axle |
430mm |
Wheel tread |
2260mm |
|
Wheelbase |
6480mm |
Center distance of balance box |
1538mm |
|
OVERALL PARAMETER |
|||
|
Overall working weight |
14600kg |
Max inclination angle of front wheel |
±18° |
|
Max swinging angle of front axle |
±16° |
Max steering angle of front wheel |
±50° |
|
Steering angle of articulated frame |
±23° |
Cutter diameter |
1626mm |
|
Cutter size(length*height*thickness) |
3658x635x25mm 12ft |
Swing angle of blade |
360° |
|
Min turning radius |
7.6m |
Lift height of blade |
445mm |
|
Cutting depth of blade |
787mm |
Blade cutting angle |
Forward 47°/backward 5° |
|
Blade side shift |
Left 673mm / right 673mm |
Max tractive force |
75kN |
|
Max speed ( forward/reverse ) |
40/30 km/h |
-- |
-- |
|
ENGINE |
|||
|
MODEL |
WEICHAI WP6G175E21 |
Type |
Inline, water cooled,dry cylinder liner,direct injection. |
|
Rated power |
129kW/2200r/min |
Engine displacement |
6750ml |
|
Cylinder bore/stroke |
105/130mm |
Min fuel consume ratio |
210g/Kw.h |
|
Max torque |
680Nm |
Emission standard |
Euro2 |
|
TRANSMISSION SYSTEM |
|||
|
Transmission type |
Fixed shaft power shift Hangchi YD13 |
Torque converter |
Single stage single phase three element. Combined together with transmission |
|
Gears |
Six forward three reverse |
Speed at forward gear I |
0-5.3km/h |
|
Speed at forward gear II |
0-8.5km/h |
Speed at forward gear III |
0-14km/h |
|
Speed at forward gear IV |
0-21km/h |
Speed at forward gear V |
0-30km/h |
|
Speed at forward gear VI |
0-40km/h |
Speed at reverse gear I |
0-5.3km/h |
|
Speed at reverse gear II |
0-14km/h |
Speed at reverse gear III |
0-30km/h |
|
TYRES |
|||
|
Front tyres |
17.5-25-12PRTT E-2/L2 |
Rear tyres |
17.5-25-12PRTT E-2/L2 |
|
HYDRAULIC SYSTEM |
|||
|
Type |
Open-type system |
System pressure |
21Mpa |
|
FILL CAPACITY |
|||
|
Fuel |
270L |
Hydraulic oil |
132L |
|
OPTIONS |
|||
|
Front dozer |
Optional |
Rear ripper |
Optional |
|
Packing |
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. |
||
|
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice |
|||
Reliability
1、Rear drive axle: 165 Hp Used Motor Grader uses the large speed ratio heavy drive axle to meet the low-speed finishing requirements, and is equipped with the No-spin limited-slip differential to greatly improve the dynamics and trafficability of the whole machine; the heavy roller chain drive balancing box can swing by ±15, to ensure that that middle and rear wheels touch the ground at the same time to significantly increase the overall traction and flatness of the blade operation.
2、Circle turn system: 165 Hp Used Motor Grader uses a dual cylinder + circle turn valve structure, so that the dual drive gear is in engaged drive with the rotary gear ring;therefore, there are more meshing teeth quantity, low teeth stress and small abrasion; the cylinder has high efficiency, and the blade is circle turn under loads, so that it has high operation precision and high reliability.
3、Moveable blade control system: 165 Hp Used Motor Grader is connected to the ear plate with the front frame through the composite bearing, so it has high impact resistance, wear resistance, low friction coefficient and high reliability; the moving part applies the imported lubrication-free and maintenance-free composite bearing and high reliability；
4、Gearbox: 165 Hp Used Motor Grader is equipped with a YD13 power shift gearbox, which can change the speed in six-forward and three-reverse to adapt to the complex conditions.
5、Braking system: the standard single-loop fully hydraulic braking system,brake valve,charge valve and other key elements apply the mico products, which is safe and reliable, and the dual-loop fully hydraulic braking system moduleis optional.
6、Frame: The front frame of the 165 Hp Used Motor Grader is in a box-type frame structure, so it has high strength and high reliability; the rear frame is in a frame structure made by welding of the box-type beam, and the attachment device is easy to assemble so it has high reliability.
Energy-efficient
165 Hp Used Motor Grader is equipped with a Weichai engine, which is in good match with the advance YD13 gearbox to achieve optimum performance and fuel efficiency, so it is energy-saving and efficient.
Convenient
1、Instrument panel: 165 Hp Used Motor Grader uses the digital stepping instrument panel, so it has high man-machine interaction and easy detection and maintenance.
2、Multi-way valve: the multi-way valve is arranged in front of the cab, which is easy to maintain.
All Used Motor Grader have a service life ranging from 2010 to 2023, and buyers are welcome to choose.
