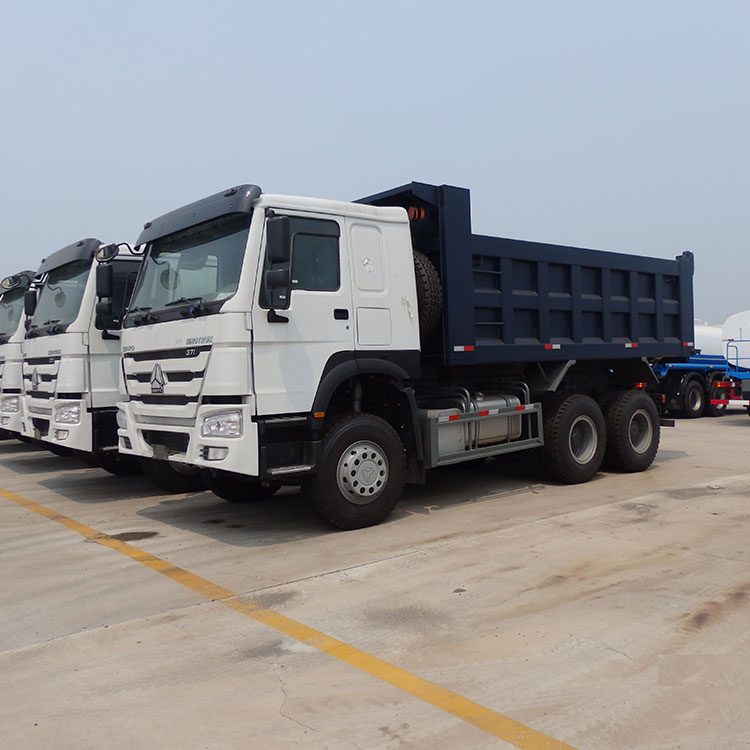

30 Tons Dump Truck

Quan Yu's high-quality 30 Tons Dump Truck often work in conjunction with excavators, loaders, belt conveyors and other construction machinery in civil engineering to form a loading, transportation, and unloading production line for the loading, unloading, and transportation of earthwork, sand, and bulk materials.

Send Inquiry

Product Description

Quan Yu's high-quality 30 Tons Dump Truck often work in conjunction with excavators, loaders, belt conveyors and other construction machinery in civil engineering to form a loading, transportation, and unloading production line for the loading, unloading, and transportation of earthwork, sand, and bulk materials.


Product Parameter

SINOTRUK HOWO-A7 8x4 DUMP TRUCK SPECIFICATIONS

Truck Model

ZZ3317N3567N1(Left Hand Drive )

Truck Brand

SINOTRUK-HOWO-A7

Dimension (LxWxH) (unloaded)mm

10345×2550×3450

Body

Carriage Internal Dimension:7300x2300x1800 mm

Steel thickness of Carriage:Floor:8mm/Side:6mm

Hydraulic Lift of Carriage:Front Lift

Approaching angle/ Departure angel (°)

19/18

Overhang (front/rear) (mm)

1500/2095

Wheel base (mm)

3500

Max. Driving speed (km/h)

75

Front axle loading capacity (kg)

2*9000

Rear axle loading capacity(kg)

2*16000

Curb weight (kg)

15580

Gross vehicle weight

41000

Cab Model

SINOTRUK A7-W Lengthen cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner.

Engine Model

Model

WD615.47(EURO II),371hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection

Rated Power(kw/rpm)

273/2200

Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 71℃opening begin, Rigid fan

Clutch

SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance

Transmission

Model

SINOTRUK HW19710 transmission ,10 forward and 2 reverse.

Brake system



Service brake

Dual circuit compressed air brake

Parking Brake

(emergency brake)

Spring energy, compressed

Steering system

Model

ZF8118 Steering Gear Box ,hydraulic steering with power assistance.

(Left hand driving)Option: ZF8098 Right Hand Driving.

Front axle

SINOTRUK 2*9000kg Front Axle,new 2*9-ton front axles of equipped with drum brakes.

Rear axle

SINOTRUK 2*16000 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.

Wheels &Tire

Rims:10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.

Option: 12.00R24 radial tire;13R22.5 tubeless tire;315/80R22.5 tubeless tire.

Electrical system

Electrics Operating voltage

24V,negative grounded

Starter

24V,7.5 Kw

Alternator

3-phase,28V,1500 W

Batteries

2x12 V,165 Ah

horn,headlamps,fog lights,brake lights,indicators and reverse light.

Head lights  and rear light mesh protection.

Oil Tank

Square type-300L fuel tank

Packing

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

The manufacturer reserves the right of technical alteration /change for better improvement without prior notice



Our Main Products Heavy Trucks and Construction Machinery. include Howo tractor trucks, dump trucks, trailer truck,Fire trucks, water tank trucks, concrete mixer trucks, special trucks,truck parts and Motor grader,wheel loader, roller loader.

we can supply these for our clients with good quality and competitive price.


Maintenance tips

1. New dump trucks or vehicles that have undergone major repairs must undergo a test run to ensure that the lifting process of the carriage is smooth and free from movement.


2. When using, lubricating oil should be selected correctly for each part according to regulations, greatly saving unloading time and labor. The lifting mechanism should strictly replace the oil on schedule.


3. Ship according to the rated loading capacity, and overloading is strictly prohibited.
