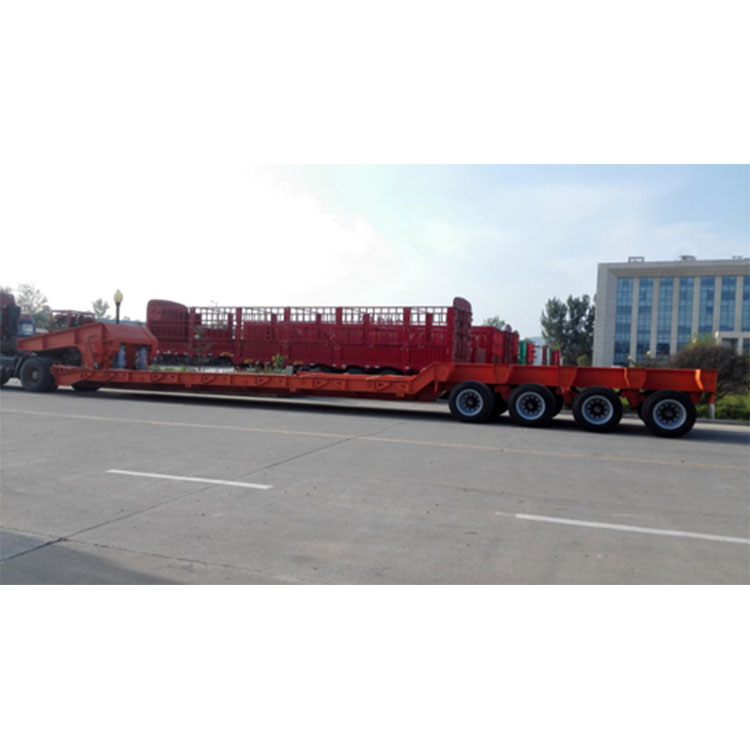

4lines 8axles Low Bed Semi Trailer
The most acclaimed 4lines 8axles low bed semi trailer Strong load-bearing capacity: The four line eight axle design enables low flatbed semi-trailers to have a large load-bearing capacity, which can meet the needs of transporting a large amount of goods. High stability: The eight axis design provides more support points for the low flatbed semi-trailer, improving the overall stability of the vehicle. During transportation, it can reduce vehicle shaking and reduce the risk of cargo damage.
Send Inquiry
Product Description
The 4lines 8axles low bed semi trailer has a large load-bearing capacity, high stability, high transportation efficiency, strong multifunctionality, good economy, and wide adaptability, making it a widely used semi-trailer in various types of cargo transportation.
Our factory directly produces all kinds of high quality semi trailers.
Flatbed trailer, flatbed semitrailer, 40 foot flatbed trailer, cargo trailer, sidewall trailer, truck trailer, semitrailer, trailer, container trailer, flatbed container trailer, tipper semitrailer, dump truck, platform trailer, tractor, transport vehicle, trailer, bulk cement trailer, bulk cement tanker, concrete mixer
Product Parameter
|
FOUR LINES EIGHT AXLES LOW-BED SEMI TRAILER SPECIFICATIONS |
|||
|
Weight |
|||
|
Total gross weight approx. |
120000kg |
||
|
Dead weight approx. |
20000kg |
||
|
Payload approx. |
100000kg |
||
|
Dimensions |
|||
|
Total length outside approx. |
16000mm |
||
|
Total width outside approx. |
3500mm |
||
|
Total height outside approx. |
3500mm |
||
|
Total length of platform approx. |
6500mm |
||
|
Total width of platform approx. |
3500mm |
||
|
Total height of platform approx. |
1200mm |
||
|
Chassis (I beam)
|
Top flange plate |
Material and thickness |
25mm |
|
Bottom flange plate |
Material and thickness |
25mm |
|
|
Material |
Q690 |
||
|
Middle flange plate |
Thickness Material |
Double 12 mm |
|
|
Height |
550mm |
||
|
Side beam height |
Height |
250# U steel |
|
|
Floor
|
Material |
Carbon steel Q345 |
|
|
Thickness |
5mm |
||
|
Floor type |
Checkered plate |
||
|
Running mechanism
|
Container twist lock |
No |
|
|
Axle |
Type |
100t |
|
|
Number |
4 lines 8 axle |
||
|
Rim
|
Type |
9.0 |
|
|
Number |
32 pcs |
||
|
Type |
315/80R22.5 |
||
|
Number |
32pcs |
||
|
Suspension |
Mechanical suspension |
||
|
Hydraulic power unit |
type |
Electric type |
|
|
Ladder |
type |
Hydraulic ladder |
|
|
King pin
|
Type |
Hydraulic lift |
|
|
Diameter |
3.5 inch |
||
|
King pin
|
Type |
Hydraulic lift |
|
|
Diameter |
3.5 inch |
||
|
Brake system
|
Air tank |
45L air tanks |
|
|
Brake chamber |
8 double spring brake chamber |
||
|
ABS |
Without |
||
|
Landing gear |
Type |
28t two speed |
|
|
Accessories
|
Spare tire carrier |
ONE |
|
|
Light |
LED light |
||
|
Voltage |
24v |
||
|
Receptacle |
7 ways(7wire harness)and quick change type |
||
|
Tool box |
One piece, |
||
|
Painting |
Polyurethane paint&anti-rust primer&sand blasting ；PU |
||
|
Tools for trailer |
Head wrench ;spare wheel crank ; |
||
|
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice |
|||
Product Characteristics:
Standard Type
Low load bearing surface,low transport gravity center of cargo,and low transport and repair costs.
1,High bearing capacity
2,Lower bearing surface
3,Applicable scope
Heavy Type
High configuration determines high bearing capacity for transport of medium and heavy cargos.
High quality realizes the trouble-free throughout the whole transport.
High benefit is beyond your expectation.
1,Lower bearing surface
2,High bearing capacity
3,New ladder
Show details
1. Steel structure: Steel frames are built with top-class hot rolled or rolled steel plate, automatic welded longitudinal beam and adopting advanced sanding and painting process as preliminary treatment.
2. Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension; Mechanical suspension.
3. Lamp assembly uses advanced LED light, top quality PC and cast wire harness in dual circuit design.
4. Automatic tire inflation and pressure sensor system is optionally available for enhanced safety and better fuel economy.
5. State-of-the-art detection devices: Components, hardness, and phase of metal are analyzed to ensure the standards of processed material; Weld seam defects, paint thickness and adhesuveness are checked and amended to guarantee the quality of finished products.
