70 Tons Truck Crane

A Quan Yu's high-quality 70 tons truck crane can perform lifting operations within a radius of about 30m and can reach a height of about 40 meters. It has high driving speed, climbing ability, and can operate in relatively small spaces.

Send Inquiry

Product Description

Quan Yu's high-quality 70 Tons Truck Crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

There are many types of car cranes, and their classification methods are also different, mainly including:

Classified by lifting capacity: light truck crane (with a lifting capacity of less than 5 tons), medium truck crane (with a lifting capacity of 5-15 tons), heavy truck crane (with a lifting capacity of 5-50 tons), and super heavy truck crane (with a lifting capacity of over 50 tons). Due to usage requirements, there is a trend of increasing its lifting capacity, such as the production of large-scale truck cranes with a capacity of 50-1200 tons.

Product Parameter

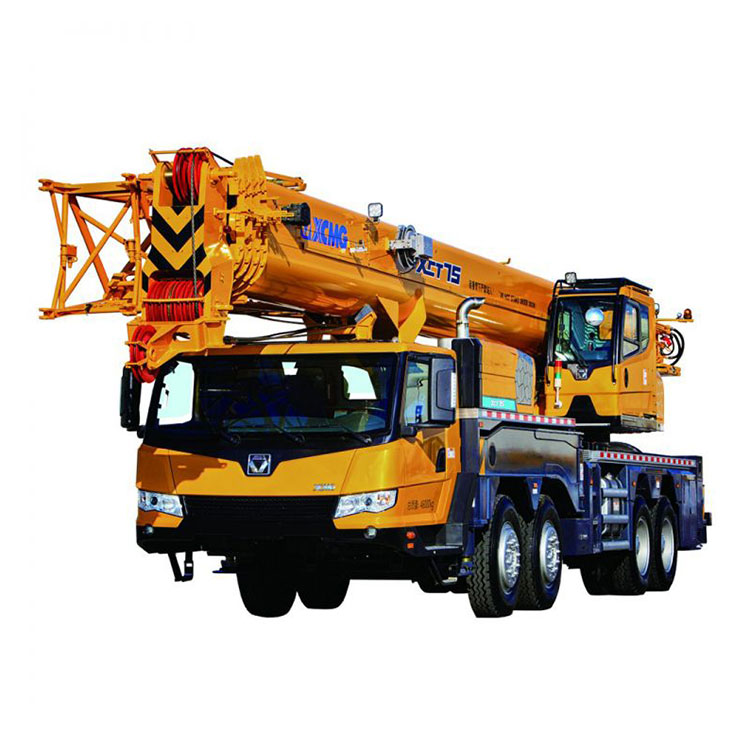

XCMG XCT75 TRUCK CRANE SPECIFICATIONS
Dimensions	Overall length		14700mm
	Overall width		2750mm
	Overall height		3910mm
	Wheel base		1470+3950+1350mm
	Track		2314/2049mm
	Front overhang		3140mm
	Rear overhang		2880mm
Weight	Total weight in travel		46000kg
	Axle load	1st and 2nd axle	10000mm
		3rd and 4th axle	13000mm
Power	Engine model		MC11.36-50
	Engine max.net power		268/1900kw/(r/min)
	Engine max. torque		1800/1100-1400N.m/(r/min)
Travel	Travel speed	Max. travel speed	90km/h
		Min. travel speed	2.5~3km/h
	Turning diameter	Min. turning diameter	24m
		Min. turning diameter at boom tip	29.9m
	Min. ground clearance		305mm
	Approach angle		16°
	Departure angle		13.5°
	Braking distance(at 30 km/h )		≤10m
	Max. grade ability		45%
	Oil consumption per 100 km		40L
	Exterior noise level		≤88 dB(A)
	Noise level at seated		≤90 dB(A)
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

* 5-section boom of 42 m with U-type profile is adopted; the max. lifting load is 75 t; the max. lifting height is 74 m; the max. working radius is 47.1 m; The performance takes the lead comprehensively.

* New energy-saving hydraulic system with high efficiency, durability and fine control (lifting: 2.5m/min, slewing: 0.1°/s)

* Optimal transmission system first created in the industry contributes to strong off-road performance and low oil consumption; the grade- ability is 45%.
