Diesel Generator Set 200KW

Diesel Generator Set 200KW,Widely used in animal husbandry, hospitals, shopping malls, ship transportation, garbage treatment, water conservancy and hydropower, factory backup, outdoor welding, metallurgical mining, cold storage, municipal engineering, civil air defense engineering, schools, flood control and drought resistance, highways, hotels and guesthouses, military, real estate, data centers, communication industries, fire backup and other industries.

Send Inquiry

Product Description

Diesel Generator Set 200KW rely on diesel combustion to generate power and drive the generator set. The use of small fuel powered generators can play an emergency role. In case of a power outage, the fuel generator can be started to generate electricity to maintain normal operation.


The diesel engine drives the generator to operate, converting the energy of diesel into electrical energy. According to its different purposes, it can be divided into land diesel generator sets and marine diesel generator sets; If different by brand, it can be divided into domestic diesel generator sets and imported diesel generator sets; According to different speeds, it can be divided into low-speed generator sets and high-speed generator sets.


Product Parameter

Diesel Generator Set Data XG-200GF/250KVA Cummins

Overall Size

Weight

2550(mm)*960(mm)*1650(mm)

2000(kg)

Set Model:

XG-200GF

Prime Output:

200KW/250KVA

Rated Current:

656(A)

Rated Frequency:

60(Hz)

Start-up time:

5~6(s)

Power Factor:

0.8(Lag)

Rated Voltage:

110/220(V)

Standard Features

Engine: Cummins 6LTAA8.9-G2;Radiator 50℃max;Fans are driven by belt, with safety guard;

24V charge alternator;Dry type air filter, fuel filter, oil filter;Alternator: single bearing alternator;

IP23, insulation class H/H;Main line circuit breaker;Standard control panel;

Absorber;Muffler;User manual;

Diesel Engine Data

Manufacturer:

Cummins

Model:

6LTAA8.9-G2

Engine Power:

258KW

Rated Speed:

1800(r/min)

Cycle:

4 stroke

Cylinder Arrangement:

6 in line

Displacement:

8.9L

Bore and Stroke:

114*145(mm)

Compression Ratio:

16.5:1

Governor Type:

 Electronic

Start battery voltage:

24V DC

Air Intake System

Air Intake System:

Turbo, Water/Air Cooling

Max Intake Restriction:

6.25kPa

Burning Capacity:

7.9m3/min

Air Flow:

158m3/min

Exhaust System

Exhaust Gas Flow:

14.8m3/min

Exhaust Temperature:

557℃

Max Back Pressure:

10kPa

Fuel System

Fuel System:

PT type fuel pump

100%( Prime Power) Load:

190g/kwh

Oil System

Oil Capacity:

16.4L

Oil Consumption:

≤0.4g/kw·h

Min Oil Pressure at Rated RPM:

350kPa

Cooling System

Cooling Way:

Water-cooled

Total Coolant Capacity:

27L

Max Water Temperature:

82-93℃

Thermostat:

104℃

Alternator Data

Manufacturer:

Stamford

Model:

UCD 274H

Excitation Mode:

Brushless and self- exciting

Number of phase and Access Act:

3-phase 4-wire

Connecting Type:

“Y” type connecting

Alternator Capacity:

255kVA

Alternator Efficiency:

95%

Overload:

(PRP)110% load can run 1h /12h

Protection Level:

IP23

Insulation Class, Temperature Rise:

H/H

TIF Telephone Influence Factor (TIF):

<50

THF:

<2%

Voltage Regulation, Steady State:

≤±1%

Air Cooling Flow:

2.18m3/s

Genset Electrical Performance

Voltage Regulation:

≥±5%

Voltage Regulation, Stead State:

≤±1%

Sudden Voltage Warp (100% Sudden Reduce):

≤+25%

Sudden Voltage Warp (Sudden Increase):

≤-20%

Voltage Stable Time (100% Sudden Reduce):

≤6S

Voltage Stable Time (Sudden Increase):

≤6S

Frequency Regulation, Stead State:

≤5%

Frequency Waving:

≤1.5%

Sudden Frequency Warp (100% Sudden Reduce):

≤+12%

Sudden Frequency Warp (Sudden Increase):

≤-10%

Frequency Recovery Time(100%Sudden Reduce):

≤5S

Frequency Recovery Time(Sudden Increase):

≤5S

The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

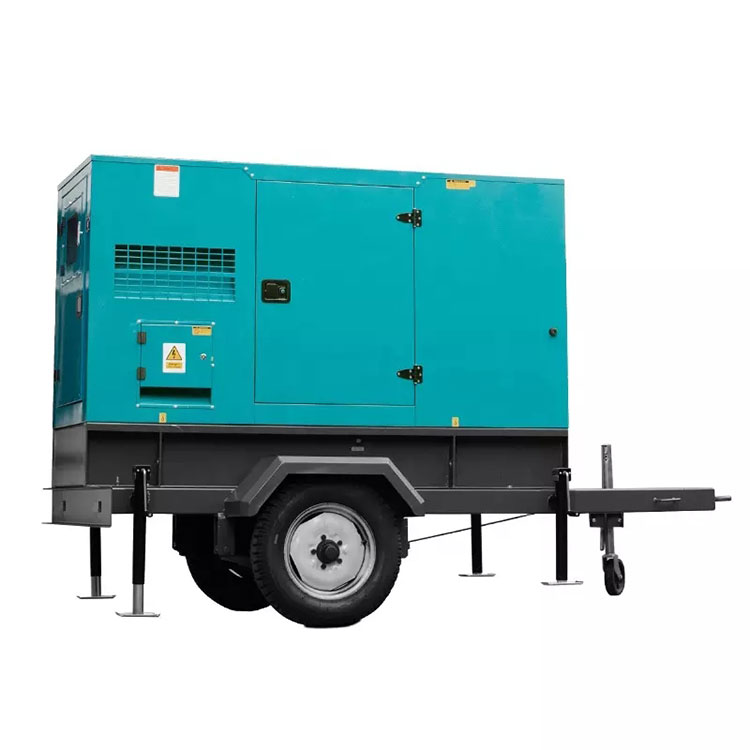

Our low noise gensets (Silent gensets) use shock insulation, sound insulation, and sound absorbing and so on noise reduction measures tomake the noise indexes decreased significantly. The low noise GFD series power station are individed into fixed and mobile types.


The noise level can reach below 80 dB(A).


This kind of power station has good mobility, strong adaptability and rapid power supply. It is suitable to be used in densely populated areas or where the environmental noise is strictly required. For example, studio, star-rated hotels, office building, scientific research institution, hospital, and universities and colleges, etc.




Characteristics of Our low noise diesel generators

1. Low noise, overall compact structure, little space occupation;


2. The box body is detachable structure, it is made of steel plate, and the surface is coated with high performance antirust paint; Meanwhile,it is with noise reduction and rainproof function.


3. The inside of the boby adopts multilayer barrier impedance mismatch noise elimination structure and built in large impedance silencer.


4. The box body structure design is reasonable; A large capacity oil tank is arranged inside the body; At the same time, two inspection doors are arranged at the left and right side of the body in order to facilitate the genset troubleshooting.


5. At the same time, the observation window and the emergency stop button are set on the box body so as to observe the running state of the genset as well as stop the machine at the fastest speed in case of emergency so as to avoid damage to the genset.


6. Bottom fuel tank for 8-12 hours operation
