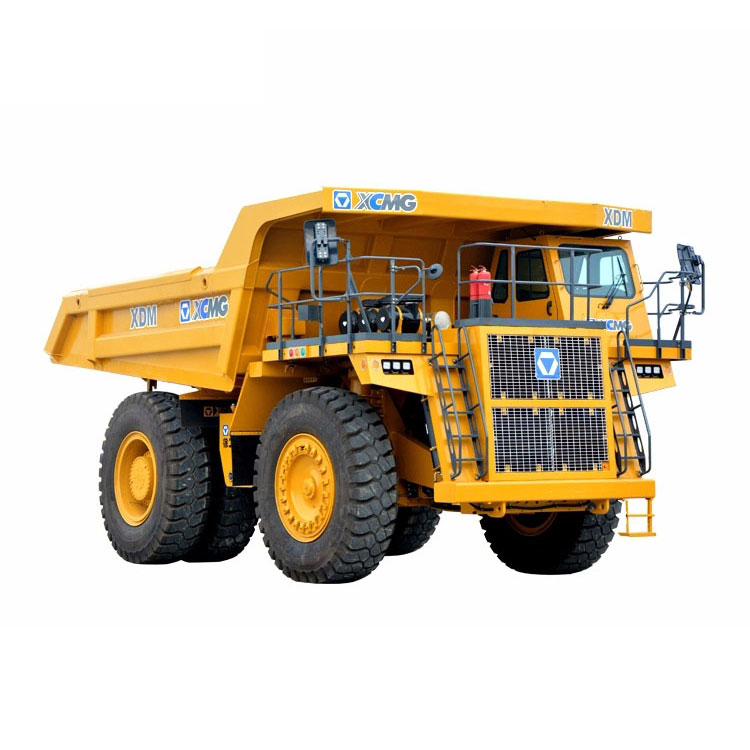

Drive Mining Truck 100 T

Drive Mining Truck 100 T is a heavy-duty dump truck used by mines to complete the tasks of rock earthwork stripping and ore transportation. Its working characteristics are short transportation distance, heavy bearing capacity, and commonly used for loading with large electric or hydraulic shovels, traveling back and forth between mining and unloading points.

Send Inquiry

Product Description

Drive Mining Truck 100 T is a heavy-duty dump truck used by mines to complete the tasks of rock earthwork stripping and ore transportation. Its working characteristics are short transportation distance, heavy bearing capacity, and commonly used for loading with large electric or hydraulic shovels, traveling back and forth between mining and unloading points.

Product Parameter

XCMG XDM100 DRIVE MINING TRUCK SPECIFICATIONS
Truck Model	XDM100
Truck Brand	XCMG
Performance Parameters	Rated Payload	91000kg
	Empty Weight	67000kg
	Gross vehicle weight	158000kg
	Drive Style	4x2
	Max. Speed	48km/h
	Max. Gradeability	30%
	Min. Turning Diameter	24m
	Body Capacity	60m³
	Overall Dimension (LxWxH)	1029058805085mm
Engine	Model	CUMMINS QST30
	Rated Power/Speed	783kw/2100rpm
	Max. Torque/Speed	4629/1300Nm/rpm
Transmission	Allison H8610AR
Drive Axle	Differential of drive axle	2.16;1
	Planetary of drive axle	13.75:1
	Total Reduction of drive axle	29.70:1
Tires and Rims	Standard Tire	27.00R49Tubeless, all-steel radial tires
Tires and Rims	Standard Rim	49-19.5/4.0
Cab	ROPS&FOPS Cab
Brake System	Front Brake	Dry disc, diameter pad area,total 1960cm²
Brake System	Rear Brake	Oil cooled multiple disc,completely sealed from dirt and water.Breaking surface,total 91000cm²
Front Suspension	Independent hydro-pneumatic suspension
Steering Hydraulic System	Flow amplified power steering. Supplementary steering automatically supplied by accumulators
Electrical	24V
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

1.Adopt Tier2 stage large-power electric control engine which has stronger power.

2.Adopt oil/air suspension cylinder with variable damping characteristics, which can better absorb the road shocks and vibrations.

3.Adopt all-floating heavy load rear axle to guarantee that the half axle is only subject to torque and thus greatly improves the service life of rear axle.

4.Adopt variable cross section parallel box beam frame, which has excellent bending and impact resistance characteristics.

5.Adopt electronic automatic control gear box, which has power and economy gear shift models to improve fuel economy.

6.Adopt limousine instrument panel, cab with pressurization design, which complies with ROPS/FOPS requirements.

Drive Mining Truck 100 T can be widely used in mining, civil engineering, quarry etc. Strong climbing ability, adapt to a variety of working conditions, high efficiency. XCMG has developed several classic mechanical drive trucks and developed lightweight mining trucks with high reliability and low operating costs. For the global market, we have a full range of mining transportation vehicles.

Performance Characteristics:

1. High performance engine Environment-friendly, electronically controlled, powerful diesel engine with less fuel consumption. High torque at low rpm for more traction power ensures strong vehicle climbing ability.

2. Structurally enhanced frame

* Welded box sectional steel structure.

* High strength alloy steel ensures the frame have high toughness to resist low-pressure impact, good fatigue properties and good weldability.

* Steel castings have been incorporated at key frame pivot points and key load bearing critical portions of the frame, includes the rear body pivot, pump pivot and cross beams, etc.

* The computer-aid design and finite element analysis ensure the frame have enough intensity.
