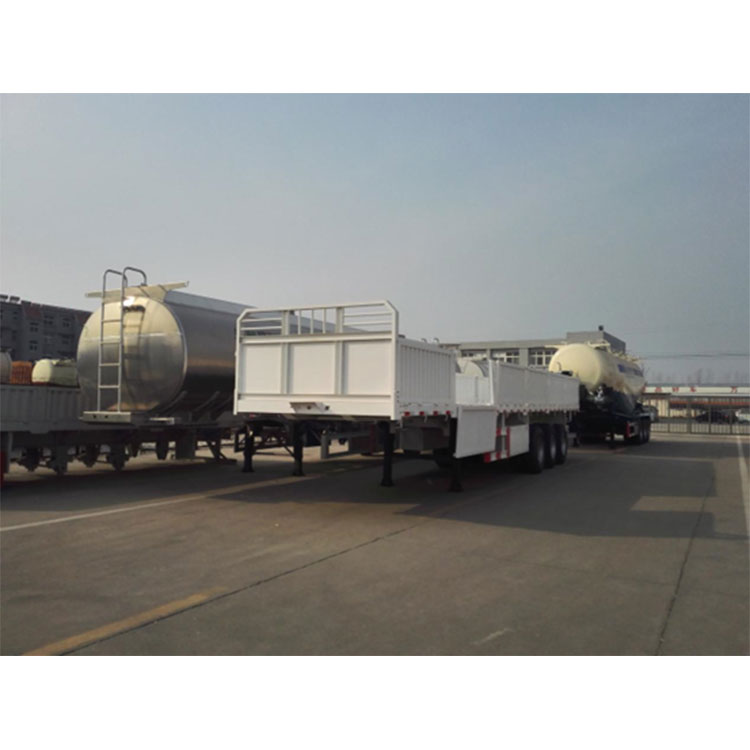

Three Axles Side Wall Cargo Truck Semi Trailer

THREE AXLE SIDEWALL SEMI TRAILER SPECIFICATIONS

Dimension

12700mm*2500mm*2860mm

Loading Capacity (T)

≤ 60 T

Axle

13 T, FUWA

Rim

9.00-22.5 9.75-22.5(special for export market )

Tire

12.00R22.5/ 315 80R22.5 (special for export market )

Suspension

Mechanical suspension  (China brand or BPW brand )

Spring leaf

90(W)mm*13(Thickness)mm*10 Layer

Kingpin

 2.0 or 3.5inch bolts type

Support leg

 China brand 28Tons (Double speed)

Main beam

Height: 500mm, upper plate is 14mm, middle plate is 8mm,
Down plate is 16mm; Material is Q345B Steel.

Side beam

16mm or 18mm channel steel (Material is Q235steel).

Bottom Platform

3mm diamond steel plate

Side Wall

600mm-1500mm ,or can be do box type ,for choose

Brake chamber

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks

ABS

Optional

Twist Locks

Four, Eight or Twelve pieces (Lifting type or Twist Screw Type), optional

Valve

WABCO valve

Light

LED light (special for export market )

Voltage

24V

Receptacle

7 ways (7 wire harness)

Toolbox

One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve, and 1 unit cranking bar)

Painting

Complete Chassis sandblasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Packing

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

The manufacturer reserves the right of technical alteration /change for better improvement without prior notice
