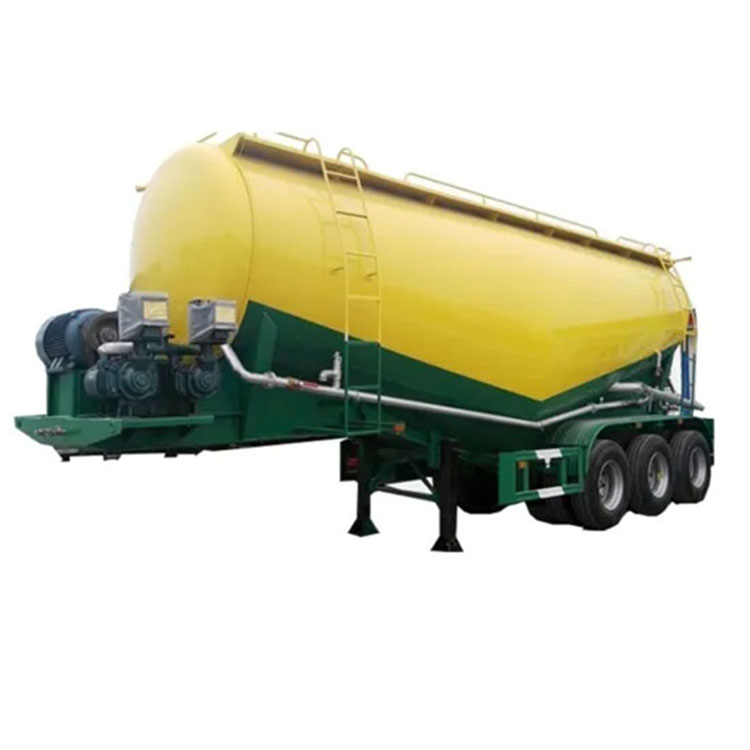

Three Axles 30 M3 Bulk Cement Semi Trailer

The most acclaimed three axle 30M3 bulk cement semi-trailer in 2024, equipped with a closed cargo compartment and automatic unloading device, is a vehicle used for transporting bulk cement. Mainly used for cement plants, cement warehouses, and large construction sites, it can save a lot of packaging materials and loading and unloading labor.

Send Inquiry

Product Description

Three axles 30 M3 bulk cement semi-trailer with, the integrated tank body has the characteristics of high overall strength, good rigidity, good pressure resistance, and good performance in use. The fluidized bed inside the tank is designed scientifically and arranged reasonably, which can effectively shorten the unloading time to 1.4T/min, improve the volume utilization rate of the tank, reduce the residual ash rate, and achieve a residual ash rate of 0.2%. The tank body of the powder material transport vehicle adopts a double cone inward inclined horizontal structure, with double tube intake and double tube feeding. Its unloading speed and residual rate meet industry standard requirements.

Product Parameter

30CBM BULK CEMENT SEMI TRAILER
Tare weight	8000kg
Size	1000025004000mm
Volume	30cbm
Loading Capacity	The load depends on the density
Tank body	T700 3MM
End plate	T700 3MM ball shape
Axle	13ton *3 axles
Suspension	Mechanical suspension American type
Leaf spring	Leaf spring 10pcs90mm13mm
Manhole cover	500mm manhole cover 2 sets
Tire	12R22.5 *12units
Wheel rim	9.0-22.5 *12pcs
Discharge valve	4" disc valve
Discharge pipe	4" seamless steel tube
Outlet pipe	4" rubber hose. 6meters
Kingpin	JOST brand 2"/3.5" bolt-in king pin
Landing gear	JOST brand two-speed, manual operating ,heavy duty landing gear
Engine	WEICHAI brand model: 4102
Air compressor	37 KW, 0.2Mpa. 1000r/Min
Compartment	1UNITS
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	Optional
Air-charging system	2" main hole.2" check valve .1.5" safe valve.0.4Mpa.gauge
Quadratic blow	1" diameter check valve
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box ,one spare tire carrier, one crank ,one shaft head wrench,
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

Product Features

Advanced technology: Major parts and components of the trailer are processed by advanced equipments. Longitudinal beams are finished by automatic tracking submerged arc welding machine; all the sub-assemblies are shot-blasted to improve paint adhesiveness and are painted before assembling.

Chassis: To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.

Axle: High performance domestic and imported axles with ABS system optionally available can significantly increase driving safety.

Suspension: High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.

Tool Box: Large capacity water-proof detachable tool box.

Hot-rolled structural steel welded 16Mn steel longitudinal beam and cross member are assembled and welded for chassis assembly. The finished chassis offers bending and deforming resistance with proper rigidity and strength.

Tested and proven structure of cargo box is constructed with profiled steel from, corrugated plate and mold pressed steel stake.

Reliable dual circuit air brake with quick release valve and quick repines of wheel cylinder ensures safe on-road and off-road operation.
