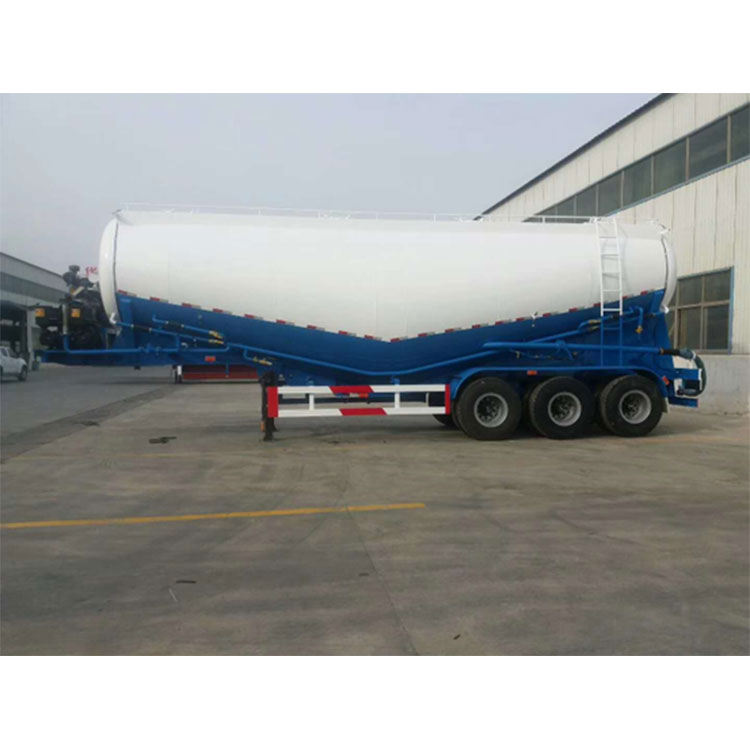

Three Axles 60 CBM Bulk Cement Semi Trailer
The latest three axle 60 cbm bulk cement semi-trailer in 2024 has strong carrying capacity, flexibility, and clean unloading.
Send Inquiry
Product Description
The three axle 60 cbm bulk cement semi-trailer uses its own engine power to drive the on-board air compressor through a power take-off, which sends compressed air into the air chamber at the bottom of the sealed tank through a pipeline, causing the cement on the fluidized bed to suspend in a fluidized state. When the pressure inside the tank reaches the rated value, the discharge butterfly valve is opened, and the fluidized cement is transported through the pipeline. Made using advanced domestic technology, with a novel design and sturdy durability. The airbag type has a large load-bearing capacity, fast unloading speed, and small residual amount.
Product Parameter
|
60CBM BULK CEMENT SEMI TRAILER |
|
|
Tare weight |
11000kg |
|
Size |
13000mm*2500mm*4000mm |
|
Volume |
60M3 |
|
Tank body |
Q235A/5mm steel sheet |
|
End plate |
Q235A/6mm .ball shape |
|
Axle |
3 axle FUWA brand 13T |
|
Suspension |
Mechanical suspension Zheng Yang brand |
|
Leaf spring |
Leaf spring 10pcs*90*13mm |
|
Manhole cover |
500mm manhole cover .2 sets |
|
Tire |
12.00R20 double star brand 12pcs |
|
Wheel rim |
8.5-20 better brand 12pcs |
|
Discharge valve |
4"disc valve |
|
Discharge pipe |
4"seamless steel tube |
|
Outlet pipe |
4"rubber hose.6m |
|
Kingpin |
2"or 3.5" bolt-in king pin |
|
Landing gear |
Two-speed, manual operating ,heavy duty landing gear 28T |
|
Engine |
Diesel engine: TIANHE OR LIYUAN brand model: 4102. |
|
Air compressor |
37 KW, 0.2Mpa. 1000r/Min bohai brand 12m³ |
|
Compartment |
Single |
|
Braking system |
WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
|
ABS |
Optional |
|
Light |
LED 8 side lights and 2 rear lights 2 width lamp |
|
Air-charging system |
2"main hole.2"check valve .1.5"safe valve.0.4Mpa.gauge |
|
Quadratic blow |
1" diameter check valve |
|
Painting |
Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
|
Accessories |
One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
|
Packing |
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. |
|
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice |
|
Application and the Technical Highlights
1、This series bulk cement tanker truck semi trailers are tank-style designed, is suitable for the transportation of liquid products, bulk materials, and bulk cement.
2、Mainly suitable for the MID/Long distance transportation of bulk cement, coal ash, lime power, mineral power, fly ash and other power material with the diameter around 0.1mm.
3、Equipped with fluidized bed, intake control system, and thrusting control system to ensure the air compressor and the perfect match of tank; Residual rate is low, safety performance is high, easy to operate; Good performance of simple structure, convenient maintenance, vulcanization.
4、Working pressure 0.2Mpa, Discharge speed 1.2-1.5t/mm, Residual rate≤2‰,Discharge height≥25m.
5、Our bulk cement tank semitrailer will not only reduce the loss rate of cement power material, but also improve the loading and unloading efficiency,
Option:
BPW, FUWA or Certificated Chinese Axles
ABS brake system
WABCO Vehicle Control System
JOST ,FUWA or Chinese brand parking leg and king pin
Air and Mechanical Suspension
Strengthen the Chassis Instructur
